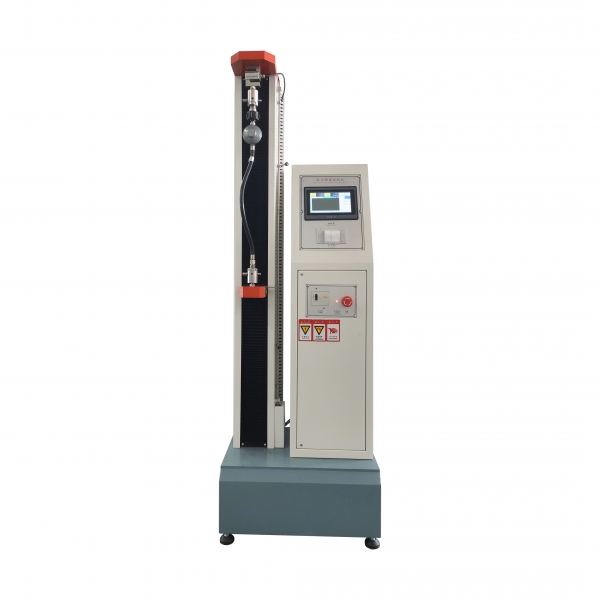

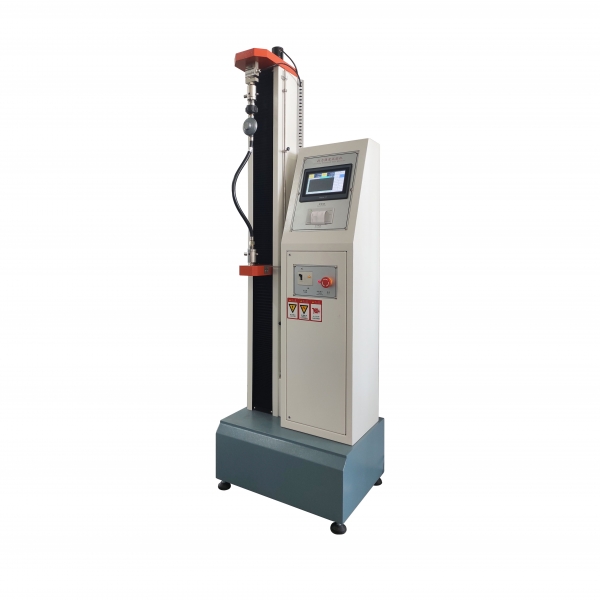

Single Column Servo Universal Tensile Testing Machine
Model: DZ-103
Summary:
Mainly applicable to rubber, plastics, wire and cable, fiber optic cable, seat belts, belts, leather belt, waterproofing materials, composite materials, plastic profile steel, copper, profile, spring steel, bearing steel, stainless steel, and other high hardness steel), castings, steel plates, steel, non-ferrous metal wire tensile, compression, bending, shear, peel, tear, two-point extension (match) exten someter and other test.
Theory:
The machine adopts mechatronics design, which is mainly composed of force sensor, transmitter, microprocessor, load driving mechanism. It has a wide and accurate range of loading speed and force measurement. It has high accuracy and sensitivity to the measurement and control of load and displacement. Floor type, modeling and painting are fully considered modern industrial design, ergonomic relevant principles.
Mainly applicable to rubber, plastics, wire and cable, fiber optic cable, seat belts, belts, leather belt, waterproofing materials, composite materials, plastic profile steel, copper, profile, spring steel, bearing steel, stainless steel, and other high hardness steel), castings, steel plates, steel, non-ferrous metal wire tensile, compression, bending, shear, peel, tear, two-point extension (match) exten someter and other test.
Theory:
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen.
The machine adopts mechatronics design, which is mainly composed of force sensor, transmitter, microprocessor, load driving mechanism. It has a wide and accurate range of loading speed and force measurement. It has high accuracy and sensitivity to the measurement and control of load and displacement. Floor type, modeling and painting are fully considered modern industrial design, ergonomic relevant principles.
Mainly test standard :
ASTMD903, ASTM D412, GB/T16491, GB/T1040, GB/T8808, GB13022, GB/T 2790/2791/2792, CNS- 11888,
JIS K6854, PSTC-7, ISO etc.
Features :
Single test, manual 10 point statistics, and automatic calculation of the average value, fracture value
Multi - unit automatic switch such as KGF, Lbf, N
Free pick point function
It has multi-function correction function
Automatic printing function
24 bit AD was used to collect, and the resolution was 1/200000
Choose anywhere from 0 to 4 decimal places
The breakpoint ratio ranges from 0 to 99%. Users can set the appropriate break down time according to different materials
Overload protection function can be set to effectively prevent overload of the machine
Specifications:
|
Items |
Universal Tensile Testing Machine |
|
Max. Capacity |
5, 10, 20, 50, 100, 200, 500Kg |
|
Unit |
G, KG, N, LB can be exchanged |
|
Accurate Grade |
1 grade |
|
Display Device |
Touchscreen controlled |
|
Resolution |
1/25000 |
|
Effective Accuracy |
± 0.5% |
|
Max.width |
300mm(or customize) |
|
Max.Stroke |
800mm(or customize) |
|
Speed Range |
0-300mm/min (adjustable ) |
|
Motor |
Inverter Motor + High Precise Ball Screw |
|
Elongation Accuracy |
0.001mm (rubber or soft plastic) 0.000001mm (metal or hard plastic or others) Optional device |
|
Power |
AC220V, 50/60Hz ( or custom-made ) |
|
Machine size |
450×500×1850mm |
|
Standard Accessories |
Tensile clamp, Tool kit, User manual |
