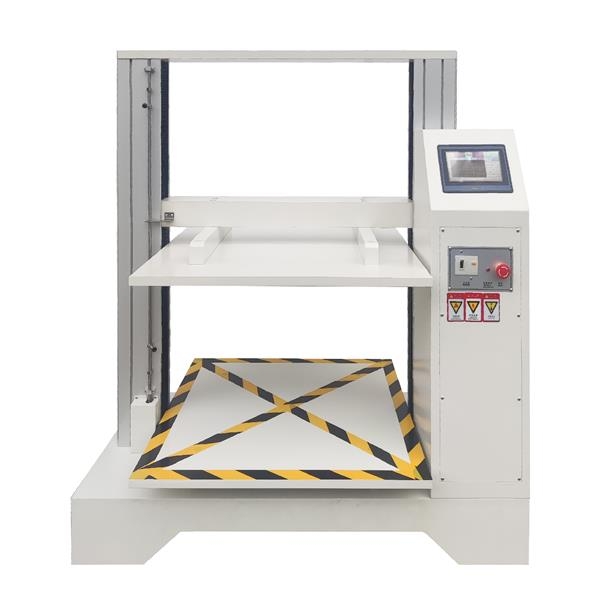

The microcomputer system carton compression testing machine is suitable for the compression and sustaining pressure tests of various packages and cartons. The test results can be used as an important reference for the height of the finished packaging boxes stacked in the factory or an important basis for the design of the packaging boxes. It can carry out tests on GB, ISO, ASTM, BS, DIN, JIS and other national or international standards. It is an ideal testing and research equipment for factories, enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes and colleges and universities.

The machine structure adopts the high-grade paint-treated sealing plate with built-in high-precision, low-resistance, no-gap double ball screws and guide columns, which improves the load efficiency and structural rigidity;

The control system adopts an AC motor with high response frequency to ensure high efficiency of the transmission system, stable transmission, low noise, and speed accuracy can be controlled within ±0.2%;

Design standard:
TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

Allowable test piece weight: 1T/500KG

Resolution: 1/10,000

Accuracy: ≤0.5%

Strength unit: KG, LB, N switchable

Report items: serial number, peak value, average value, set pressure value, memorable

Safety device: overload protection, overvoltage protection, limit protection device

Structure: Taiwan AC variable frequency motor, ordinary screw rod

Compression space: 800*800*800mm

Compression speed standard: 10±3mm/min

Dimensions: (L×W×H)1400×800×1700mm

Weight-host: about 600kg

Power supply: 1∮, 220v/50Hz
