Universal Tensile Test Machine
Summary:
The servo universal materials tensile tester is applied to all kinds of hardware, metal, rubber and plastic materials, shoes, leather, clothe,textiles, yarns, an insulator, wire and cable, for many kinds of materials. It tests every items physical test performance. For example tear, strip, anti-pressure, bending, shearing force, peeling, tensile strength, laceration, adhesion force, three / four point bending, compression etc.
Theory:
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load
cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the computer.
cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the computer.
Standards:
ASTMD903, ASTM D412, GB/T16491,GB/T1040,GB/T8808,GB13022,GB/T 2790/2791/2792,
CNS- 11888,JIS K6854, PSTC-7, ISO 37, ISO 1798, BS EN 1979, BS EN ISO 1798 etc.
Features:
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.
2. Using a single-screen operation; do not need to switch the screen
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily
4. The pattern of Test reports can be self designated; test data can be displayed directly in the main screen.
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics
Specifications:
|
Items
|
Universal Tensile Test Machine
|
|
|
Model
|
DZ-101
|
DZ-101S
|
|
Max. Capacity
|
10,20,50,100,200,500,1000,2000Kg
|
5000, 10000, 20000, 30000Kg
|
|
Unit
|
G, KG, N, LB can be exchanged
|
|
|
Accurate Grade
|
0.5grade
|
|
|
Display Device
|
PC contoller to display
|
|
|
Resolution
|
1/300,000
|
1/200,000
|
|
Extensometer
|
measurement range:10～800mm
Indication error: below ±0.5%
Measurement resolution: 0.008mm
|
|
|
Effective Accuracy
|
±0.2%(0.5grade)
|
|
|
Max. Effective Stroke
|
800mm (column 143mm)
|
|
|
Speed Range
|
0.05-500mm/min (adjustable )
|
0-250mm/min (adjustable )
|
|
Motor
|
Servo Motor + High Precise Ball Screw
|
|
|
Elongation Accuracy
|
0.001mm
|
|
|
Power
|
AC220V, 50/60HZ(custom-made)
|
|
|
Test space (the center distance between the upper and lower fixture joint pins)
|
Single space (X lower space) 1000, double space (SYXL up press and down pull , SLXY up pull and down press)
|
|
|
Standard Accessories
|
Tensile clamp, Tool kit, Computer system, English software CD, User manual
|
|

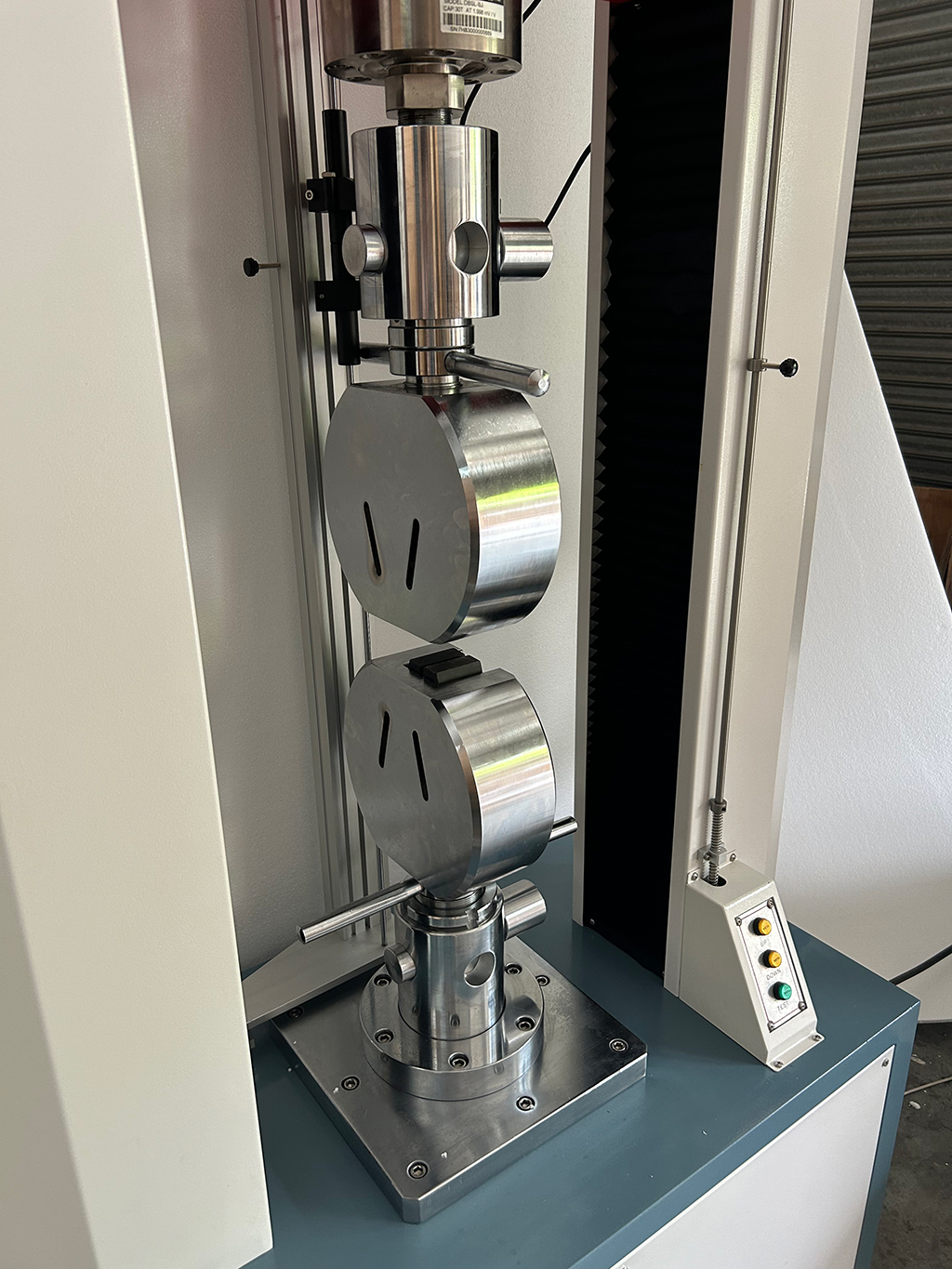

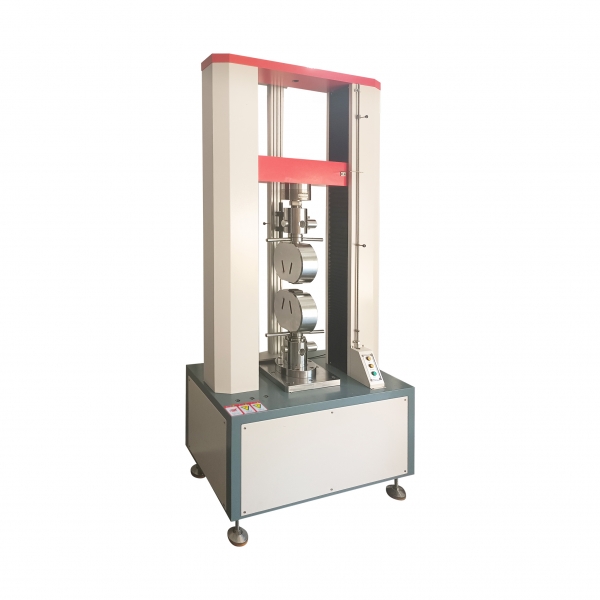

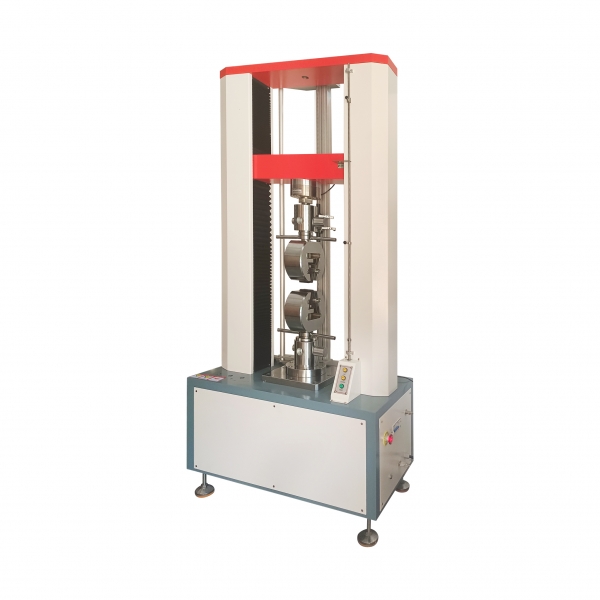

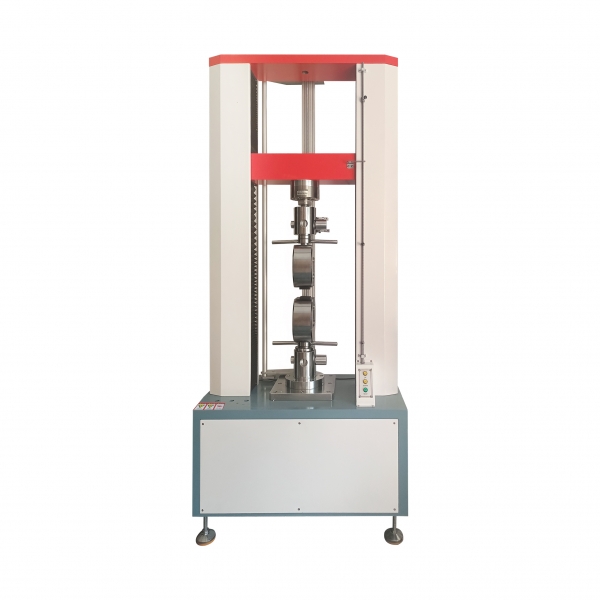

Main Unit imagine
The drive system consist of servo control reduction motor, arc synchronous belt, ball screw, moving steadily, high working efficiency, low noise, no pollution.
All input and output interfaces adopt high - speed optoelectronic isolation technology with strong anti-jamming capability
Electrical measurement and control system
1) With protect function of overload,over current, over voltage, displacement limit, emergency stop etc.
2) The controller can control more load sensor, high integration, stable and reliable, easy to adjust
3) When finished testing, automatic stop
4) Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen (PWM), and other functions in one
5) Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
Software and software interface
1) Based on Windows operation platform, the software adopting modulus design, with simple operation and powerful functions
2) The control panel has defined all the control parameters, data dealing method and report content also the form, different test can be set according to the control panel.
3) Program adopting open database structure, integrated the GB, ISO,ASTM,JIN, DIN testing methods and can customized according to special requirements
4) With internet interface, can transmit, save and print data. Can connect enterprise Internal LAN and Internet.
5)Can edit and set the report form freely, also can print out the testing data.
