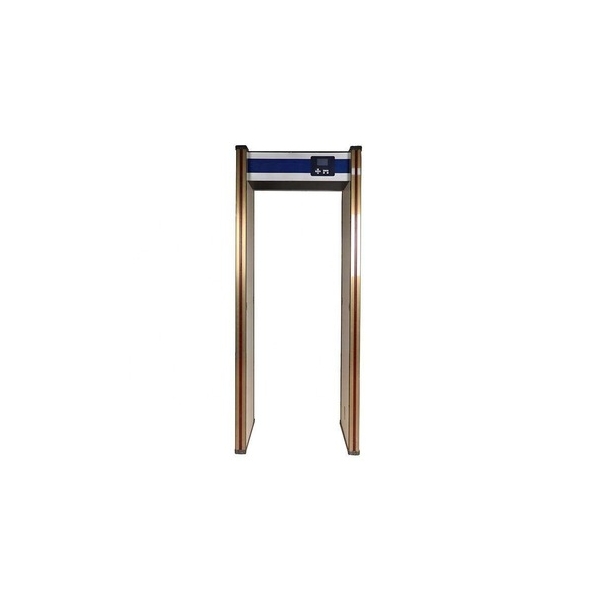

ZONHOW Quick Detect Infrared Human Body Temperature Security Door
Summary:
The Intelligent Temperature Detect Gate uses a high-precision infrared temperature sensor with a sensingdistance of 0.5-1 meters. It has high precision and high resolution and is immune to the environment andsunlight. The measurement error at room temperature is ± 0.5 ° C, and the resolution is 0.02 ° C. Theinitial temperature setting is 37.3 ° C (adjustable). The actual body temperature of the human body isdisplayed when the detection door is in operation. An alarm is issued when the temperature exceeds 37.3 ° C.
Non-contact initial screening for abnormal body temperature, fast detection speed, can prevent personnel contact with cross-infection.It has a 7-inch LCD screen, which can display the information of measuring temperature, alarm temperature, alarm times, number of people passing through, compensation parameters and so on.
Main Parameters:
| Items |
Quick Detect Infrared Human Body Temperature Security Door, Intelligent Temperature Detect Gate |
| Response time/ Probe time |
0.1S/0.5S-1.5S |
| Measure Range |
30℃~42℃ |
| Temperature Measure Accuracy | ±0.5℃ |
| Repeated accuracy | ±0.2℃ |
| Temperature sensor module | MELEXIS |
| Measure Position and Distance | Forehead, Wrist / 5~15cm |
| Display Screen | 7 inch colour touch screen |
| Frame Dimension | 2202*820*550mm (H*W*D) |
| Channel Dimension | 2000*700*550mm (H*W*D) |
| Power | 110~240V |
Features:
• Sensing probe: imported infrared probe;
• High pass rate: measure the palm, back of the hand, or forehead;
• Prevention of missed inspection: The product design conforms to ergonomics, which can ensure that the inspected person cannot escape the probe and avoid inspection; When a person passes, the temperature of the human body will be automatically broadcasted. When the humanbody reaches a fever temperature (37.3 ℃), it will automatically alarm;
• Detection accuracy: The detection result can be accurate to one digit after the decimal point.
• Temperature error atnormal room temperature ±0.1 ℃;
• System function: After the test is completed, there are reminder and voice readings, there is alarm and voice
readings when the temperature is high;
1.Are your company a trading one or a factory ?
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
