Summary:

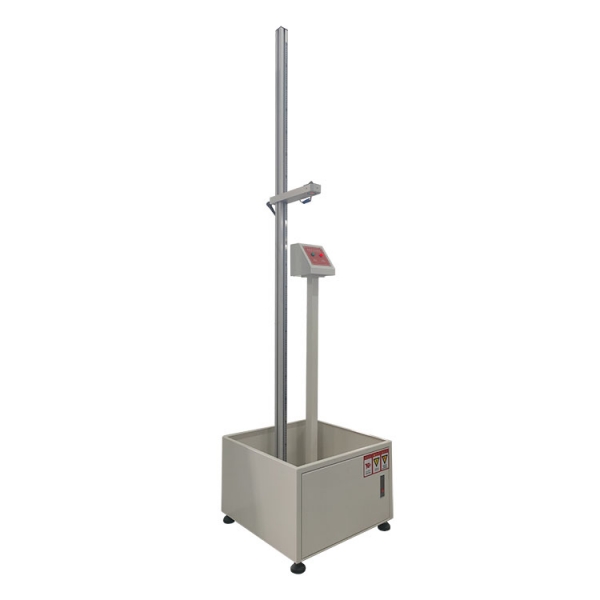

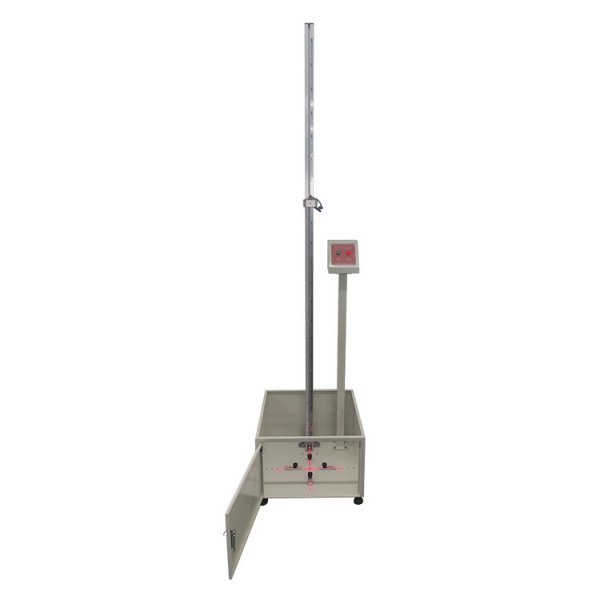

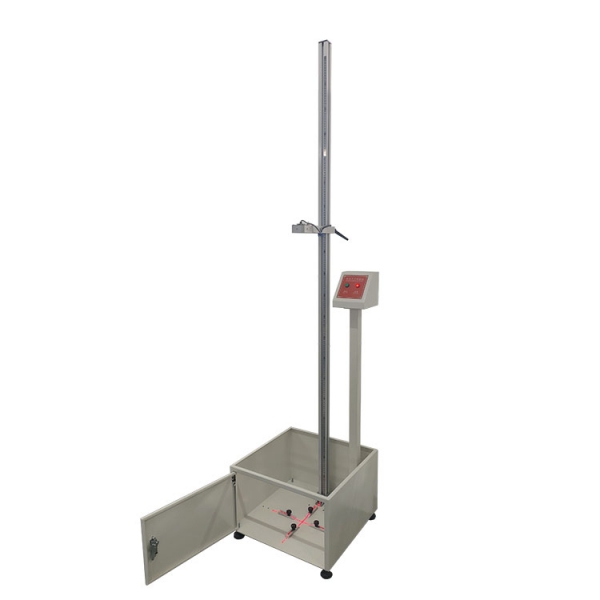

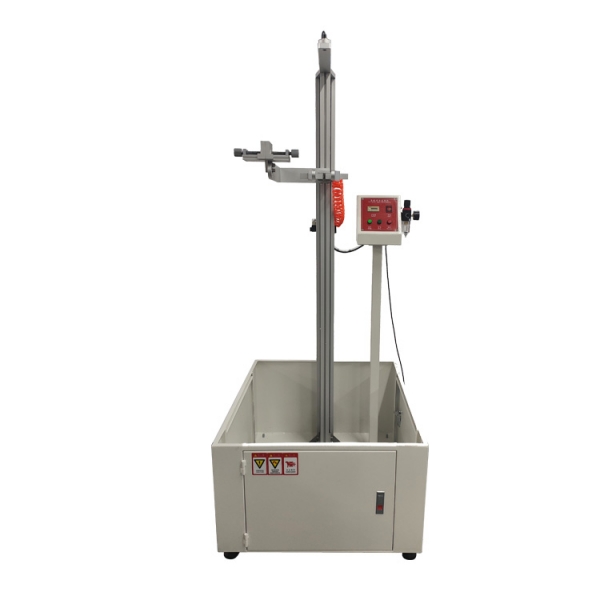

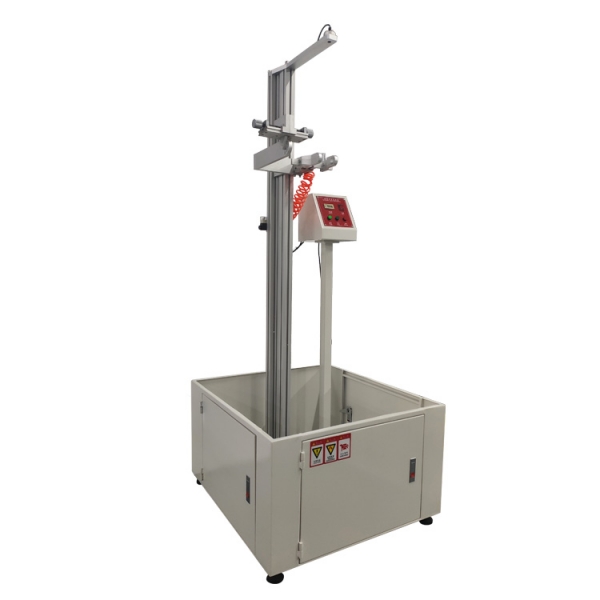

Plastic Drop Ball impact test machine is a kind of test the fastness for plastics, ceramics, acrylic, glass weaving and other materials

and coatings.

Test theory :

The machine with the weight of the steel ball mandatory adjustment in a certain height, make steel ball drops hit the sample freely,

depending on the damage, in order to test the quality of the products.

Main Features :

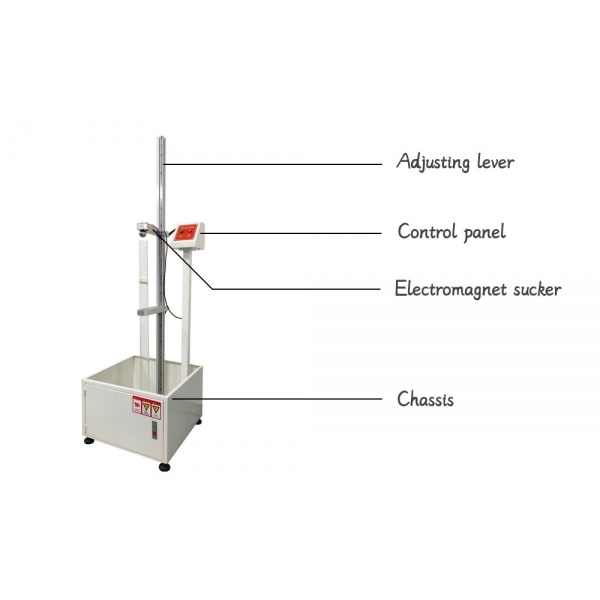

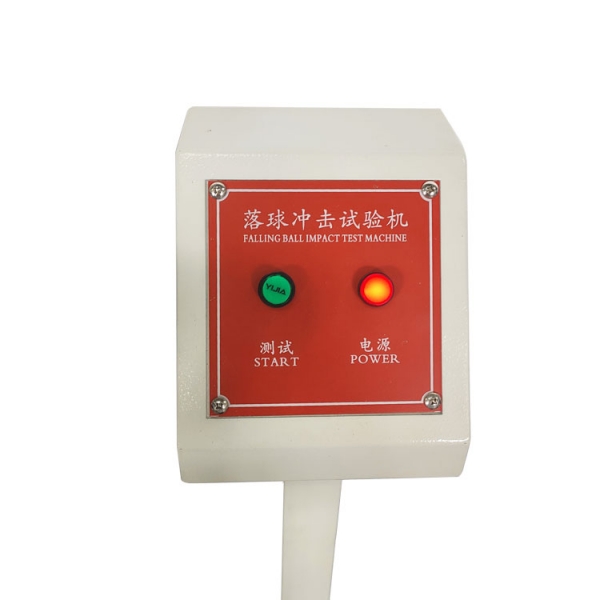

It adopts dc electromagnetic control mode, put the ball under the magnetic chuck, steel ball automatic sucked,

press down fall, chuck instantaneous release of steel ball, steel ball will be free fall to impact specimen surface.

Drop height can be adjusted up and down with altitude scale, can be learned that ball drop height.Weight of the

steel ball to regulation, in a certain height, free fall, hit the sample, depending on the degree of damage.

Test standards:

JIS-K6745，A5430 and etc.

Specifications:
