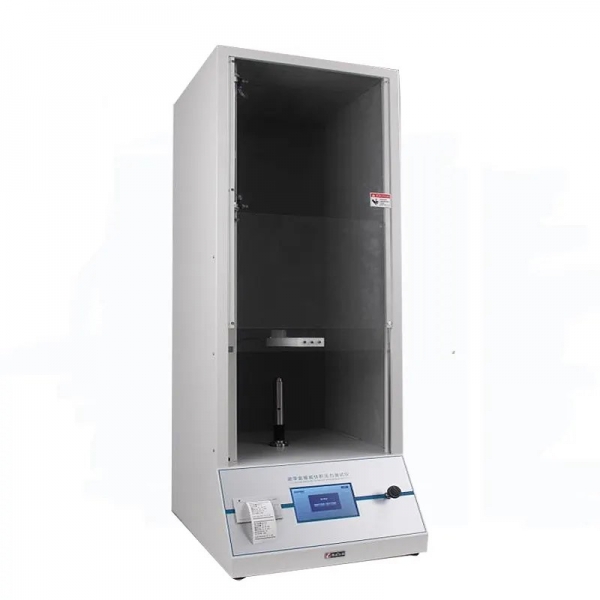

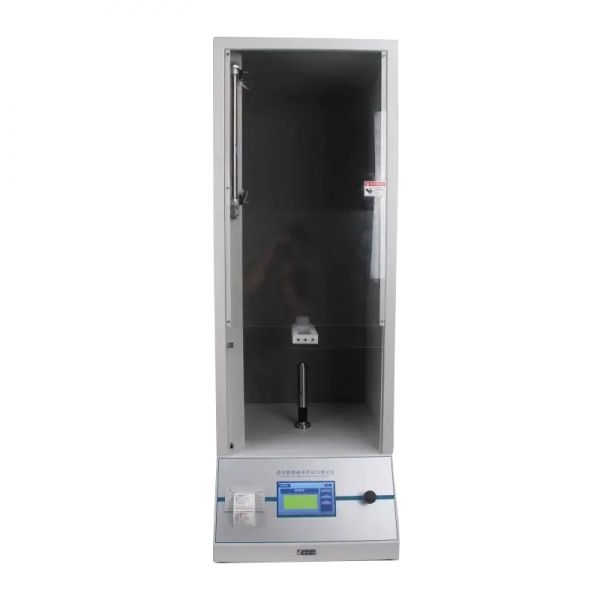

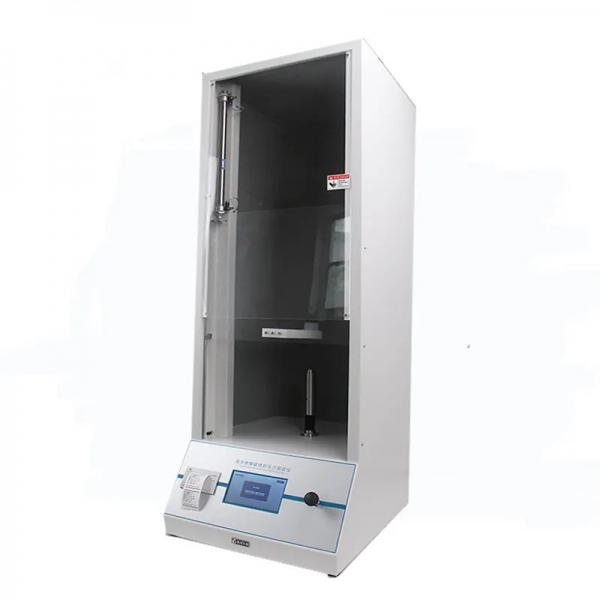

Summary:
The condom automatic bursting tester meets the production standard of GB7544-2009. For the convenience of
operation, through the manual interface operation, the instrument can not only automatically and accurately
detect, automatically display, automatically record the pressure value, volume value and use time in the process
of inflation test and the instant of condom explosion, but also provide the function of automatically printing test
results.
Testing Standard
The instrument conforms to many national and international standards: GB7544-2009, ISO4074, ISO23409,
ASTM D6324.
Technical Parameter
Test workstation: One Station
Air flow test accuracy: ±1%
Volume range : 0-60dm3
Volume range : 0-60dm3
Volume test accuracy: ±1.5%
Pressure accuracy: ≤ ±3%
Pressure range: 0.05Kpa
Air connection: 6mm Polyurethane tube
Size: 600 mm*500mm*1300mm
Power: AC 220V 50Hz
Net weight: 20 kg
