I.Introduction

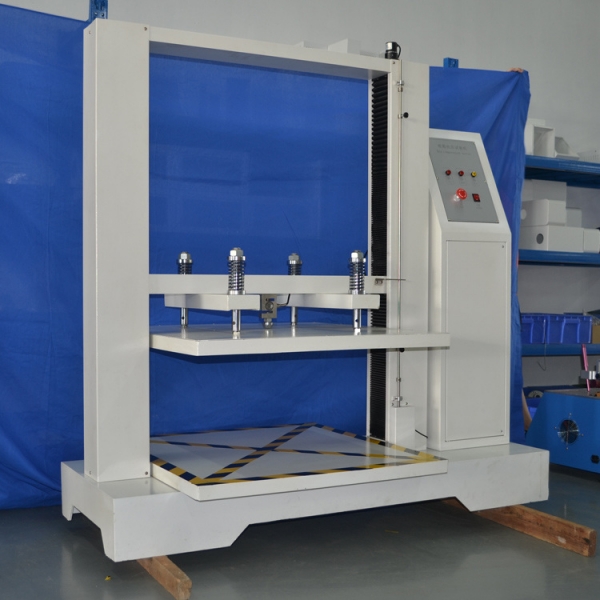

The Box Compression Tester is a two column, heavy-duty tester designed to determine the compressive forces which a transport case is subjected to, either in transit or stacked in a warehouse. Boxes can be tested to complete collapse or held automatically at a predetermined load for a given period to evaluate stacking loads.

The construction of the tester consists of a rigid moving platen driven by four recirculating ballscrews. Platen parallelism is better than 1:4000. Load readings are taken from an average of four balanced load cells to compensate forthe effect of any off center loading.

The model CT features automated control of test procedures from an external PC. A comprehensive Windows.NET software package is provided to cover all types of testing.

FEATURES：

Max load capacity 10 kN (1000kg)

Units of compression may be selected in N, kgf or lbf

Load cell accuracy better than 0.5% of indicated value

Repeatability and reproducibility is ensured by the use of two guide columns maintaining platen parallelism

RS232 serial data output

Auto loading range is(0.4%~100% of 10KN ) and boxes up to 0.512m3 can be accommodated

Speed range is digitally selected from 0.1 to 85 mm/min

Cycle between preset loads or extension limits

Test modes: constant deflection and constant load

APPLICATIONS

Corrugated boxes and cartons

STANDARDS

BS 1610:1985 Grade 0.5, DIN 51221 class 1 and ASTM E-4

1.Are your company a trading one or a factory ?

Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.

OEM is also acceptable for us.

2.How to choose the most suitable products?

Our professional team will give you the best suggestion as long as you tell us what kind of test you

need to do and the required specification.

3.What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.

4.Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

5.Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to

arrange hotel and pick up you from airport.

6.Do you have customers of our country before?

Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,

Brazil and so on.

7.How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.

8.How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.

9.What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and

debugging - balance payment - packing - delivery - customer receiving - after service.

10.How to install and use the product

The product is shipped with an operating instructions and video of English version.
