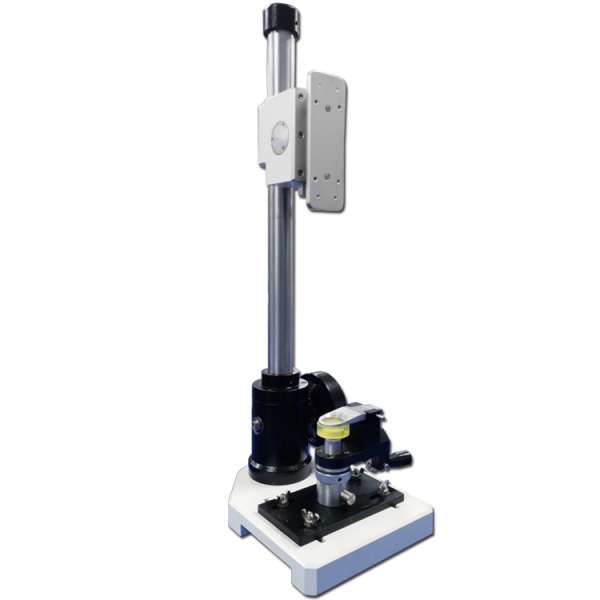

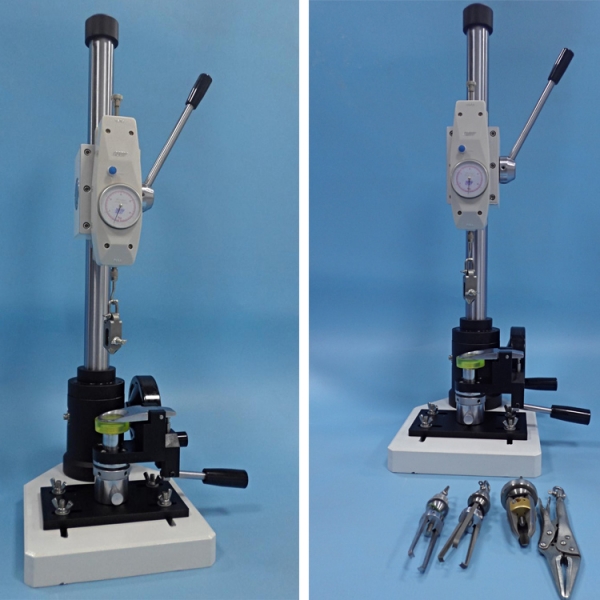

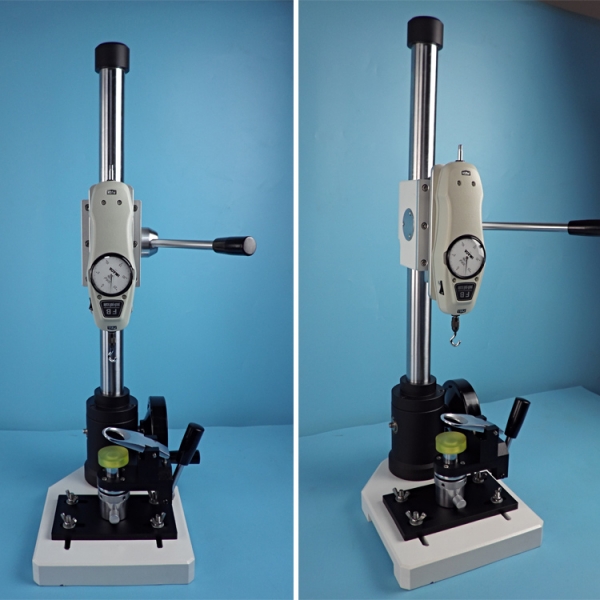

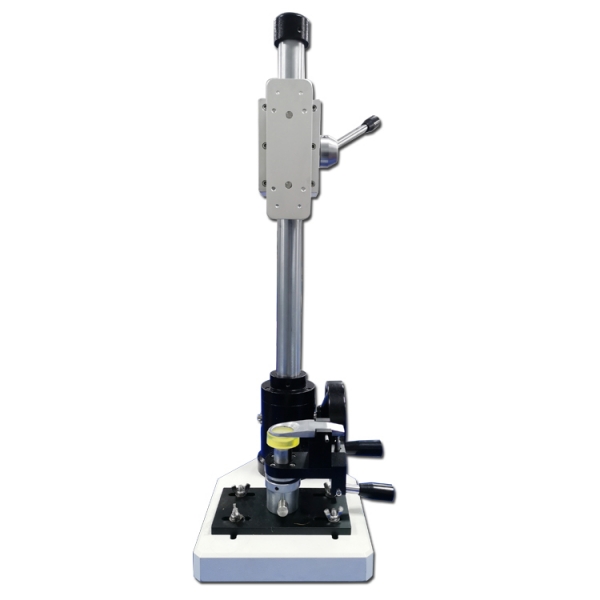

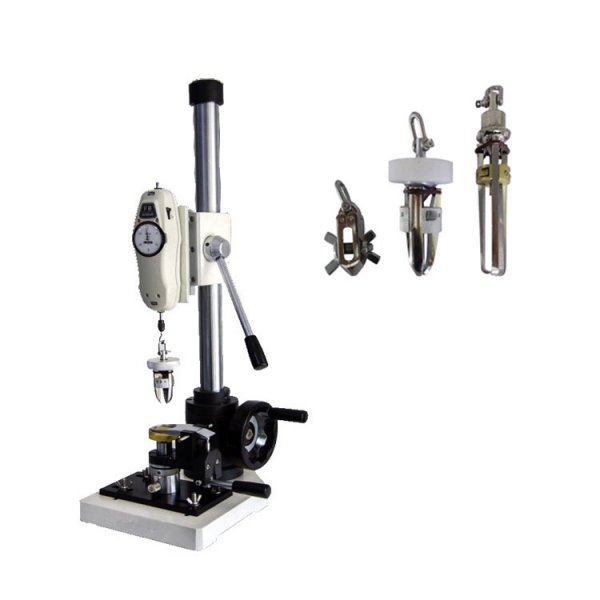

Model: DZ-316

Summary:
It is designed to define the Clothes buttons manufacturer duty to ensure buttons which is used to determine the holding or breaking strength of buttons attached snap fasteners onto garments.

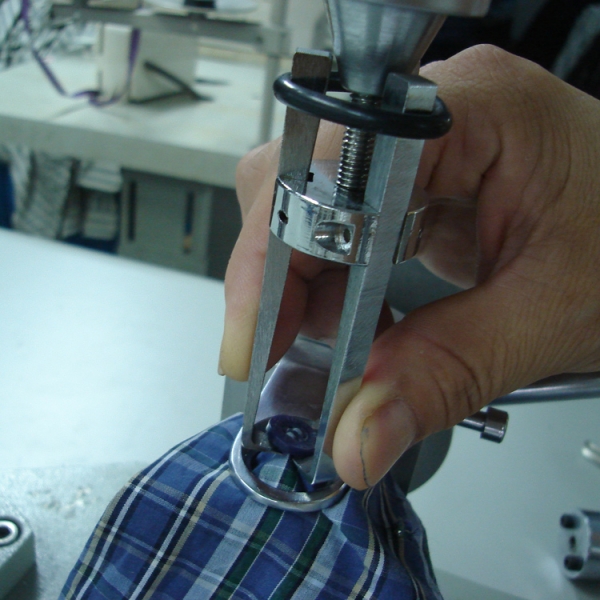

It is used to perform a button pullout test to prevent separation between the snap and the garment, prevent the buttons divorce from the clothing which represent a dangerous situation if the loose snap is swallowed by children and baby.

Standards

16CFR 1500.51-53, ASTM WK4510 PS79-96, ASTM F963, EN71-Part1, M&S P115A etc.

Features:

1. This test method used to measure the intensity of the vertical pull test buttons and clothing and the buttondoes not pull to

out of clothing.

2. This test require button sewing specifications be in accordance with the standards set by the button Manufacturer.

3. This test used to set up different dressed in the environment related,and to compare the different button types and brands.

4. Screw transmission, and precise displacement measurement head, lateral handwheel loading, simple and stable operation.

5. The standard configuration of base platform, can move around, convenient for accurate clamping.
