Designing Standard
IEC61215, ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;prEN 1062-4, BS 2782;JIS D0205;SAE J2020,ect.
Specifications
|
Product name
|

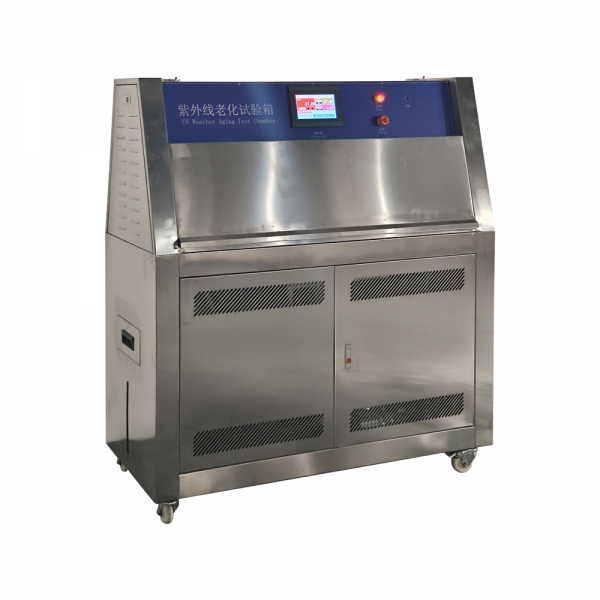

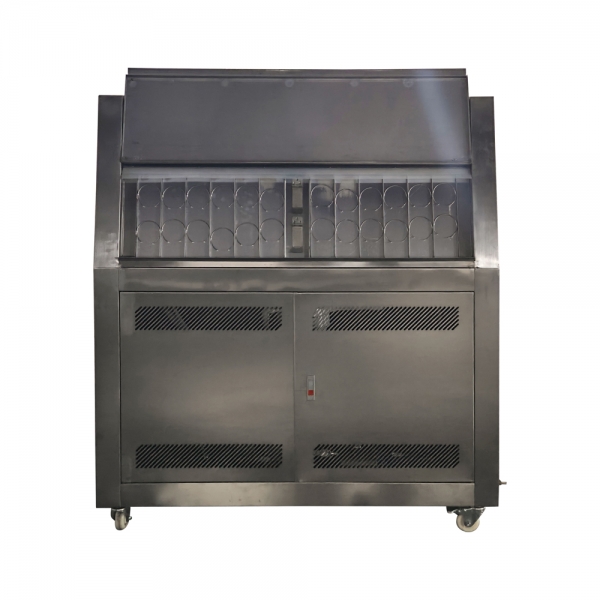

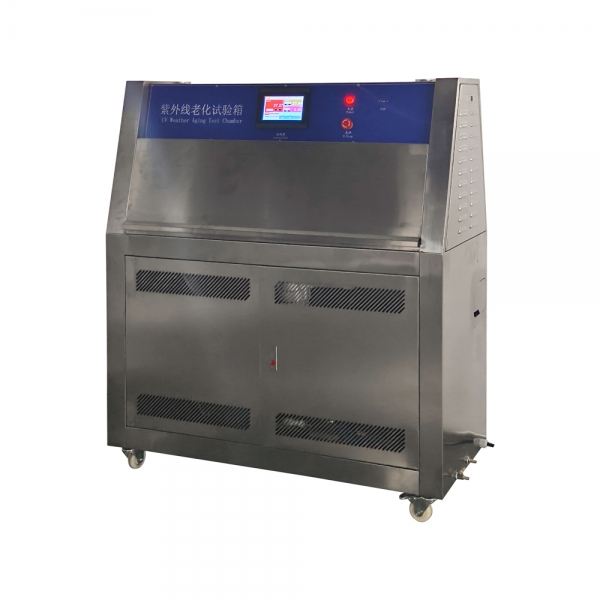

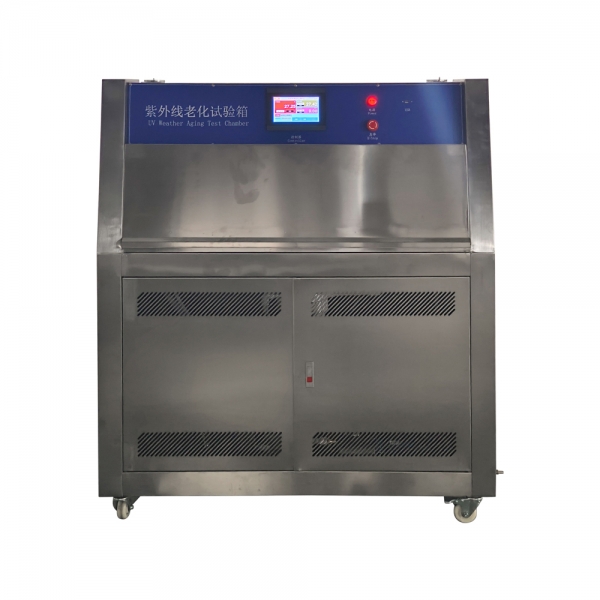

Ultraviolet test equipment, Uv accelerated aging weathering test chamber |
|
Studio Size
|
660*1150*600mm
|
|
Temperature range
|
RT+10~70°C
|
|
Materials
|
Inside and Outside SUS#304 stainless steel
|
|
Temperature uniformity
|
±1°C
|
|
Humidity range
|
≥90%RH
|
|
Controller
|
Korean TEMI 880 programmable controller
|
|
Control mode
|
Balance temperature humidity control (BTHC)
|
|
Distance from sample to lamp
|
50±3mm (adjustable)
|
|
Centre distance between the lamp
|
70mm
|
|
Temperature control
|
PID SSR control
|
|
Wavelength ultraviolet light
|
UV-A: 315-400mm (8pcs, 2000h lifetime)
|
|
Lamp power
|
40W/Piece
|
|
Illumination Heating System
|
all independent system, nickel chrome alloy electrical heating type heater
|
|
Water Supplying System
|
Humidification water supplying automatic control
|
|
Power
|
220V/50Hz /±10% 5KW
|
|
Protection system
|
Overload short circuit protection, over temperature protection, water lacking protection
|
Features
1. The ultraviolet aging tester is designed according to uses’ operation , it’s easy to operate, safe and reliable.
2. The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3. The door rotating up does not interfere with the operation and the tester takes a very small space only.
4. It’s unique condensating system can be contented by tap water.
5.The heater is under the container rather than in the water, which is long life, easy to mainten.
6. The water level controller is outside the box, easy to monitor.
7. The machine has truckles, convenient to move.
8. Computer programming is convenient, automaticly alarming when incorrect operated or faulted.
9. It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10. It has Chinese and English instruction book, convenient to consult.
11. Divided into three types: common, light irradiance controlling, spraying
Chamber Structure
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Control System
Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.
Temperature Humidity Chamber Rain Spray IPX Chamber Sand Dust Proof Chamber Xenon Arc Aging Chamber
FAQ：
1.Are your company a trading one or a factory ?
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
