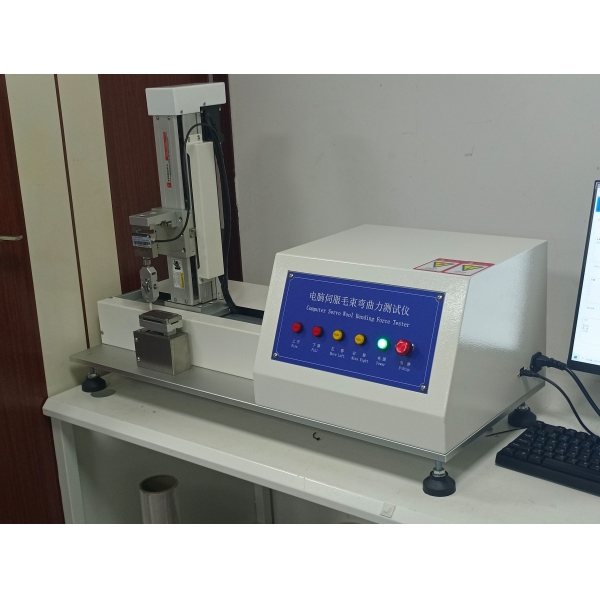

The DZ-169 computer servo bending force tester evaluates the strength of the brush hair bundle by the force generated by the bending resistance of the hair bundle, so as to classify the strength of the hair bundle. This test is suitable for all kinds of makeup pens, brushes, etc.

1, the equipment chuck left and right, up and down to use servo motor, precision control

2, the accuracy of the force sensor is high, and the force of the brush is light

3. The product testing standard can be debugged and saved separately, and the product name testing standard can be synchronized when used

4, coated part of the use of stainless steel plate (size 40MM*60MM)

5, the test report can be exported to electronic documents

6, when the brush products are fixed on the fixture, the test press the start key, the action requirements are, slow down, after touching the coating plate (produce a certain force), the upper and lower positions automatically return to zero. Then move down according to the set down height, and apply

Product characteristics

First, the bristle height is measured, and then the force generated by the bristle resistance is measured. Then the strength of the bristle is classified according to the strength grade of the bristle.

Technical parameter

1. Running speed: 10-50 mm/s can be set

2. Configure the sensor range: 50 N

3. Accuracy: 0.05N

4. Drive motor: servo motor

5. Control system: Computer software (computer customer)
